    ATEX ZONES

    JBOX Ex-e ATEX Medium Voltage junction boxes

    JBOX Ex-e Medium Voltage junction boxes 7,2/11/24/36kV are ATEX certified to be installed in hazardous area environments.

    Request a quote
    Close X

    Request a quote

    Complete the form to request a personalized quote.

      I read and agree to the the disclosure concerning the Processing of Personal Data pursuant to EU Regulation 2016/679 art. 13 and 14*.

      Atex MV junction boxes are designed to prevent generation of arcs, sparks or dangerous temperatures that can trigger an explosion and they are suitable for installation in a classified Group I Category M2 area (mine) and for Group II 2GD surface plants with protection level Gb.

      Cear developed three different type of Junction boxes for different needs and applications.

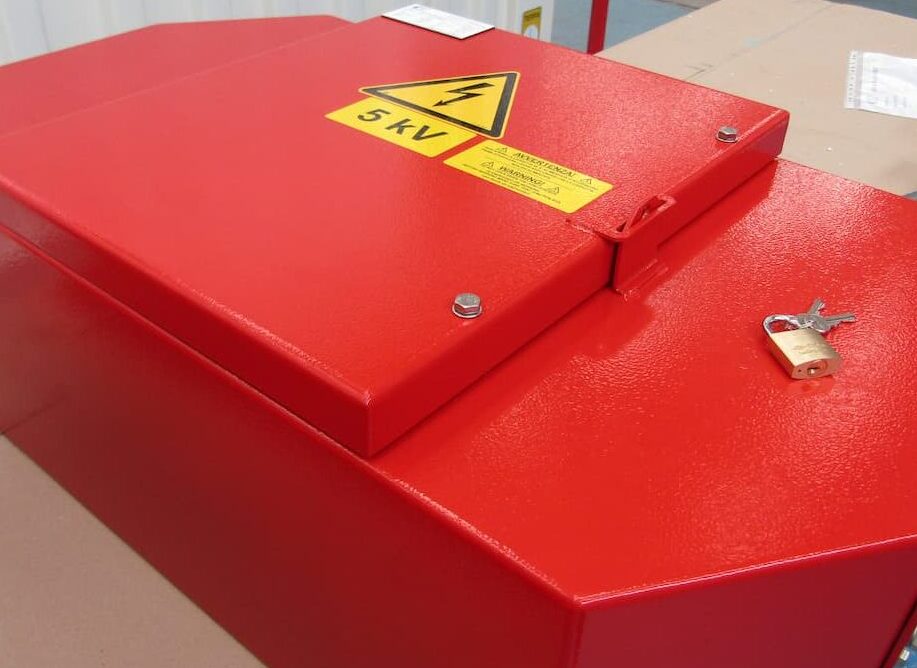

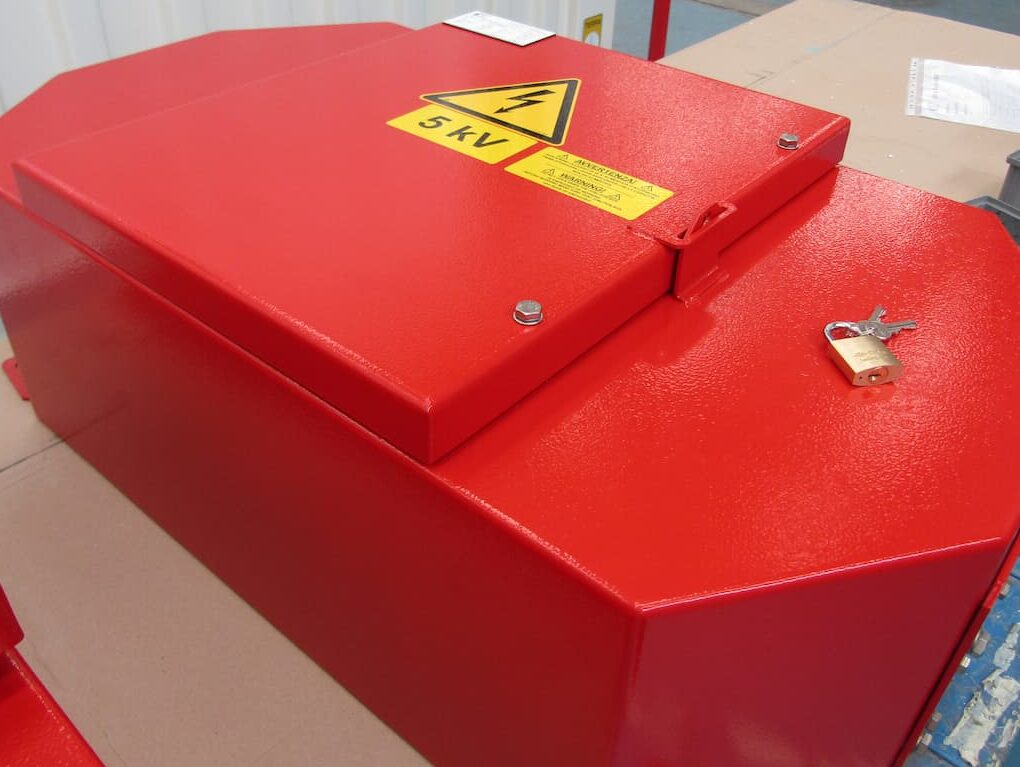

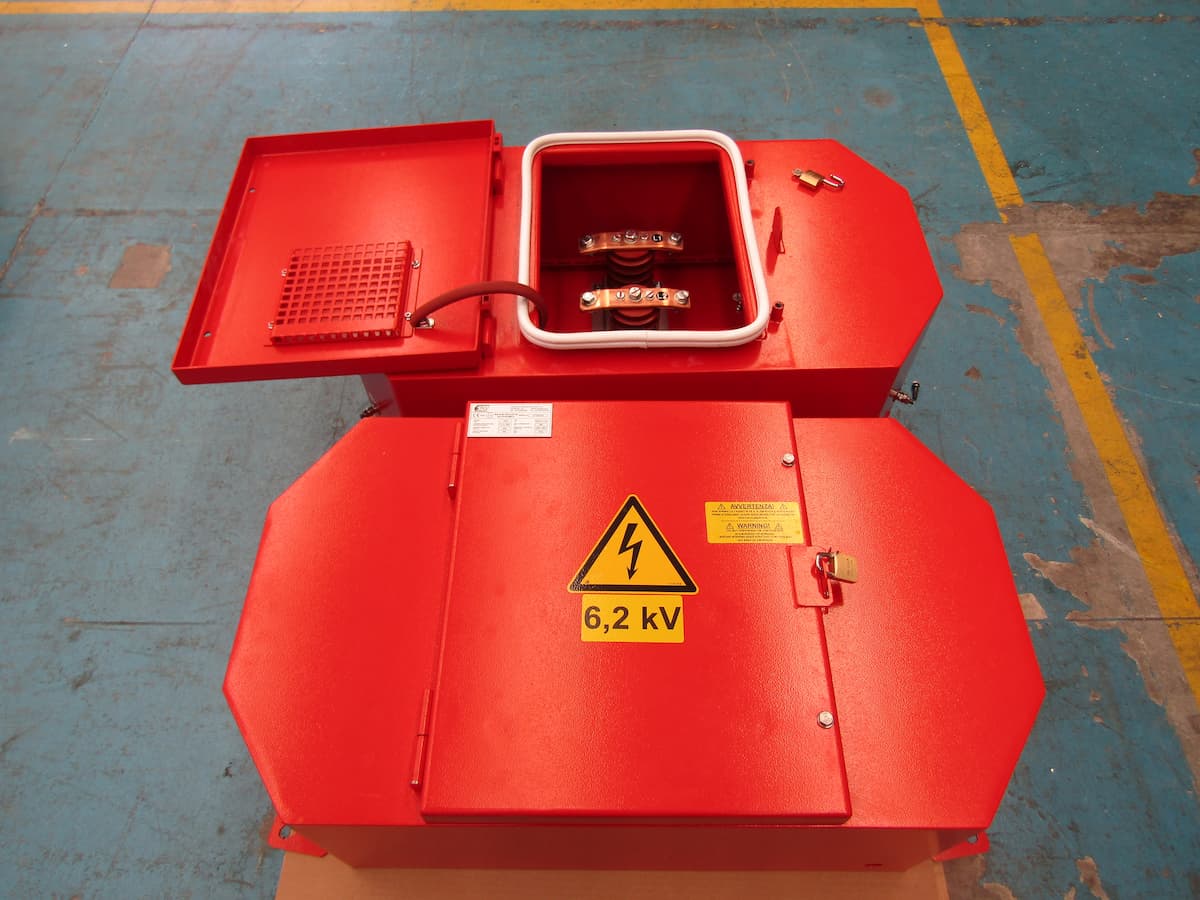

      JBOX Ex e octagonal type from 7,2 to 36kV
      Datasheet

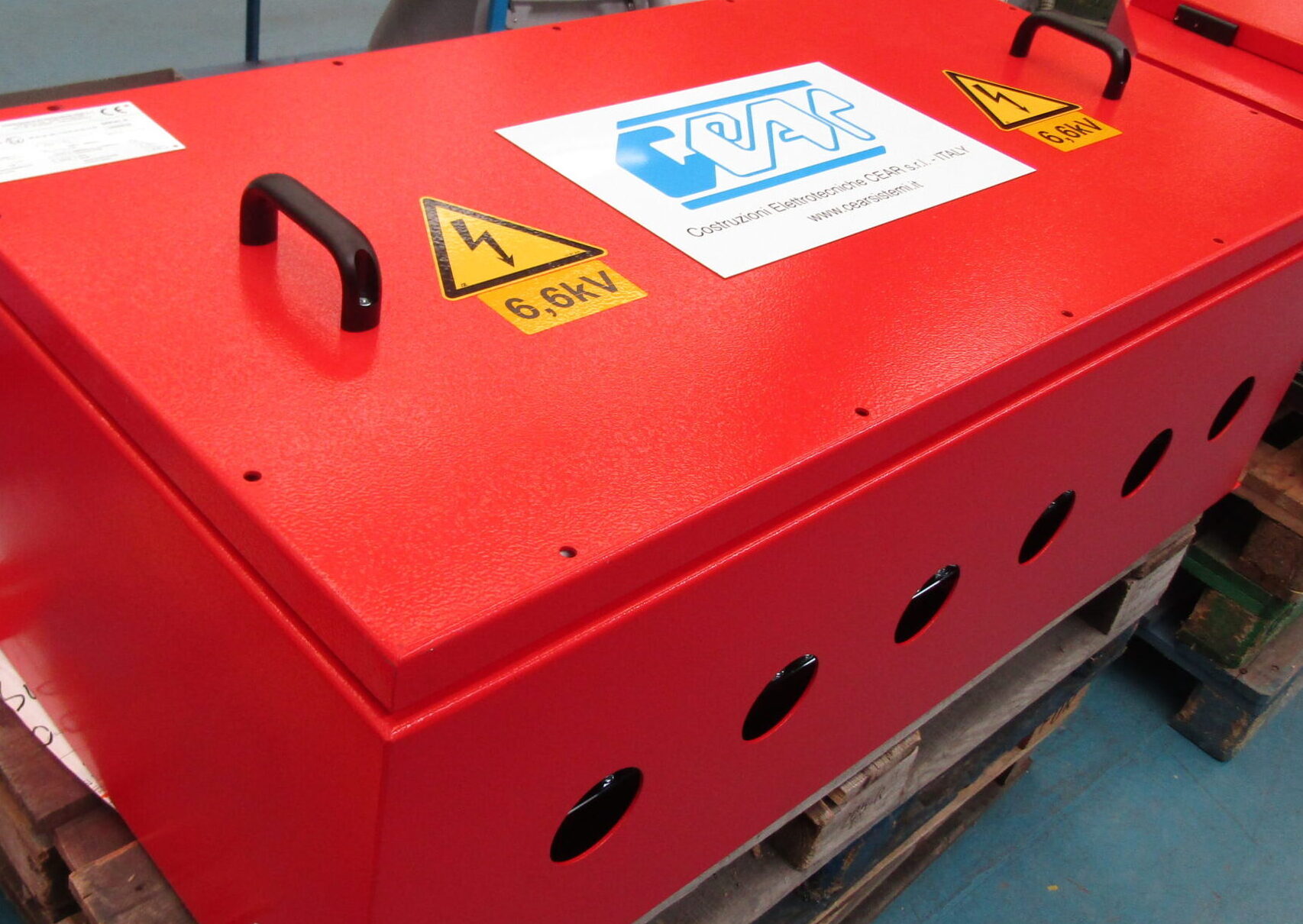

      JBOX Ex e distribution Junction box 6,6kV
      Datasheet

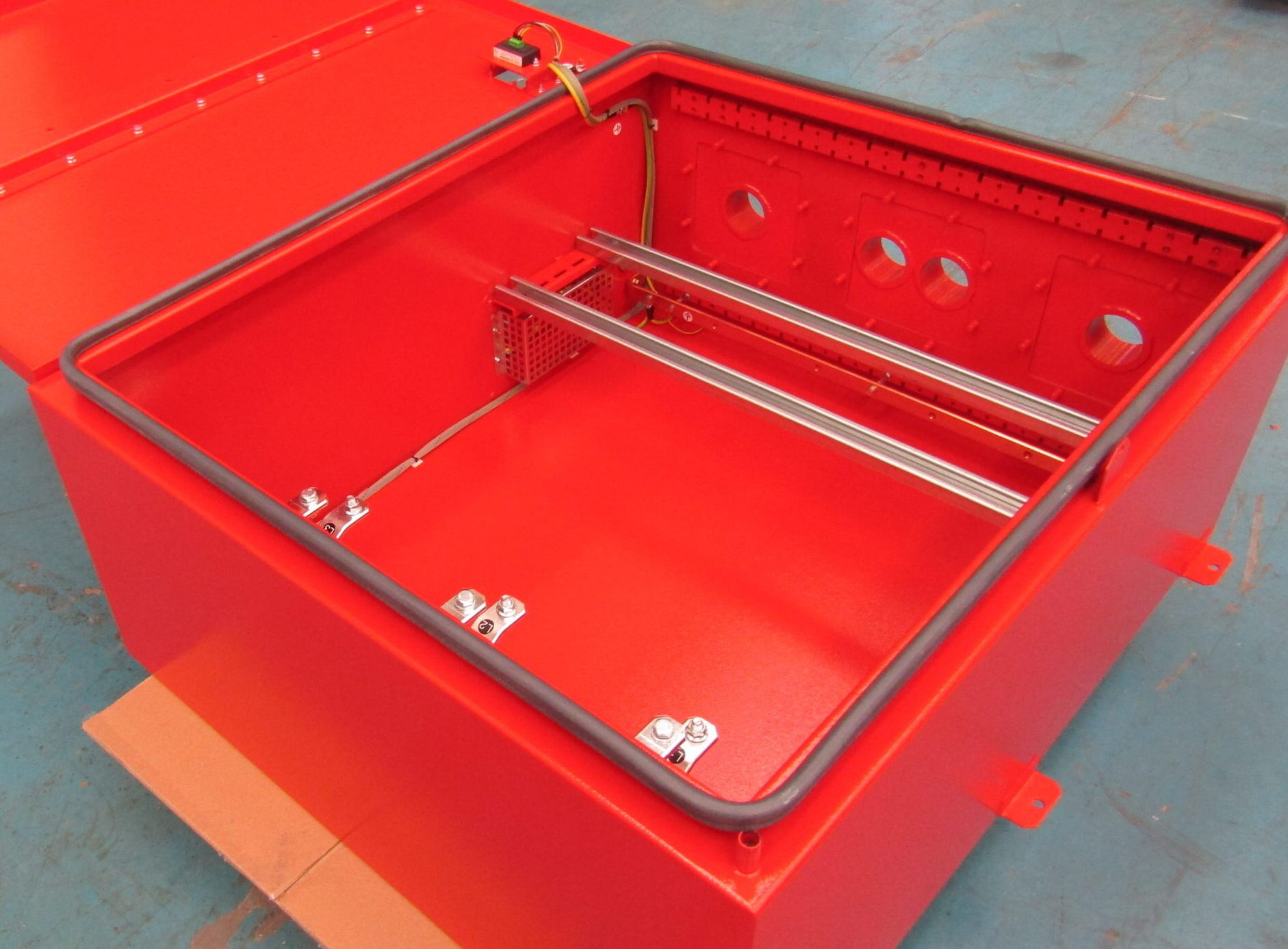

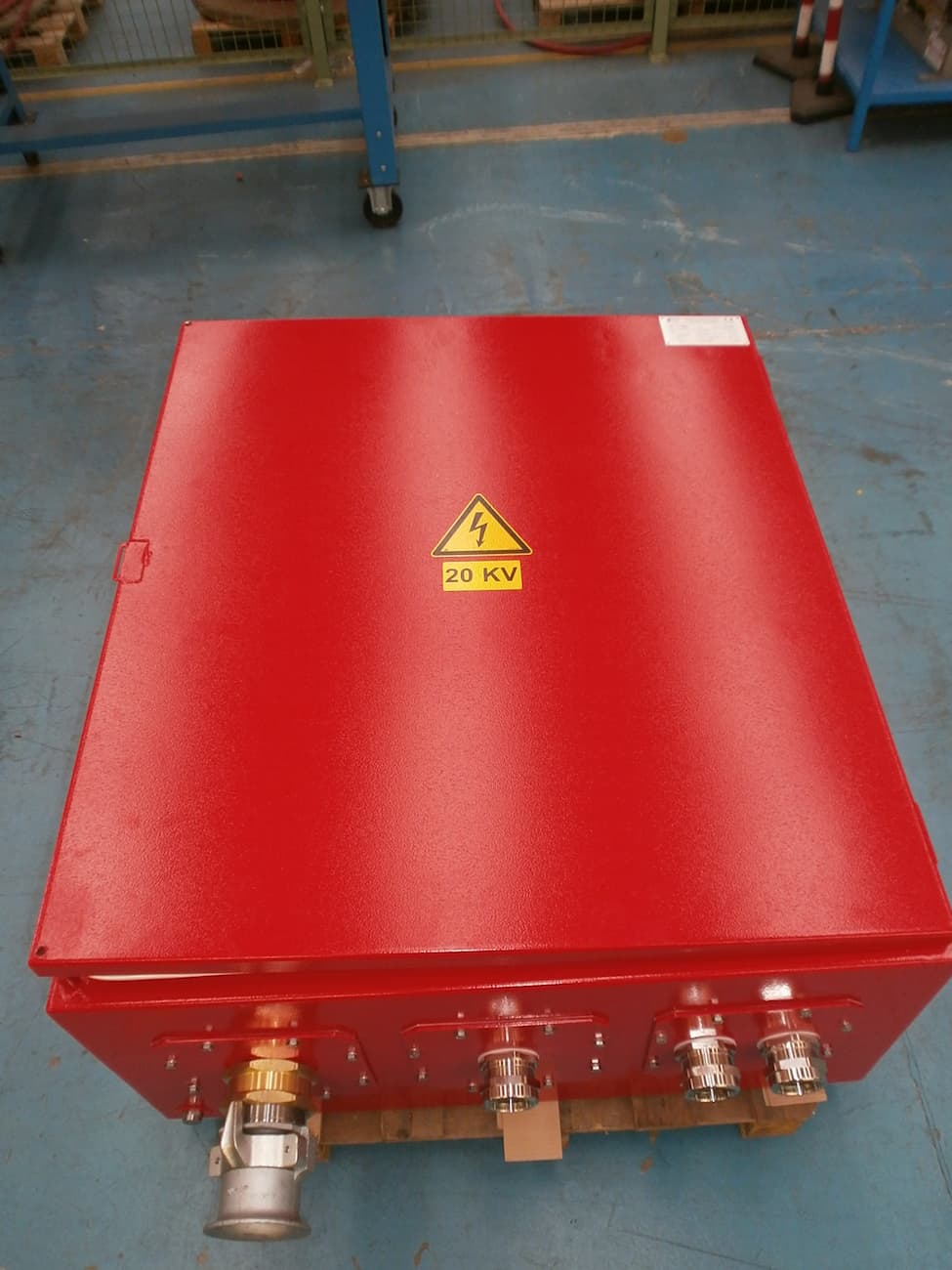

      JBOX Ex e rectangular type from 7,2 to 36kV
      Datasheet

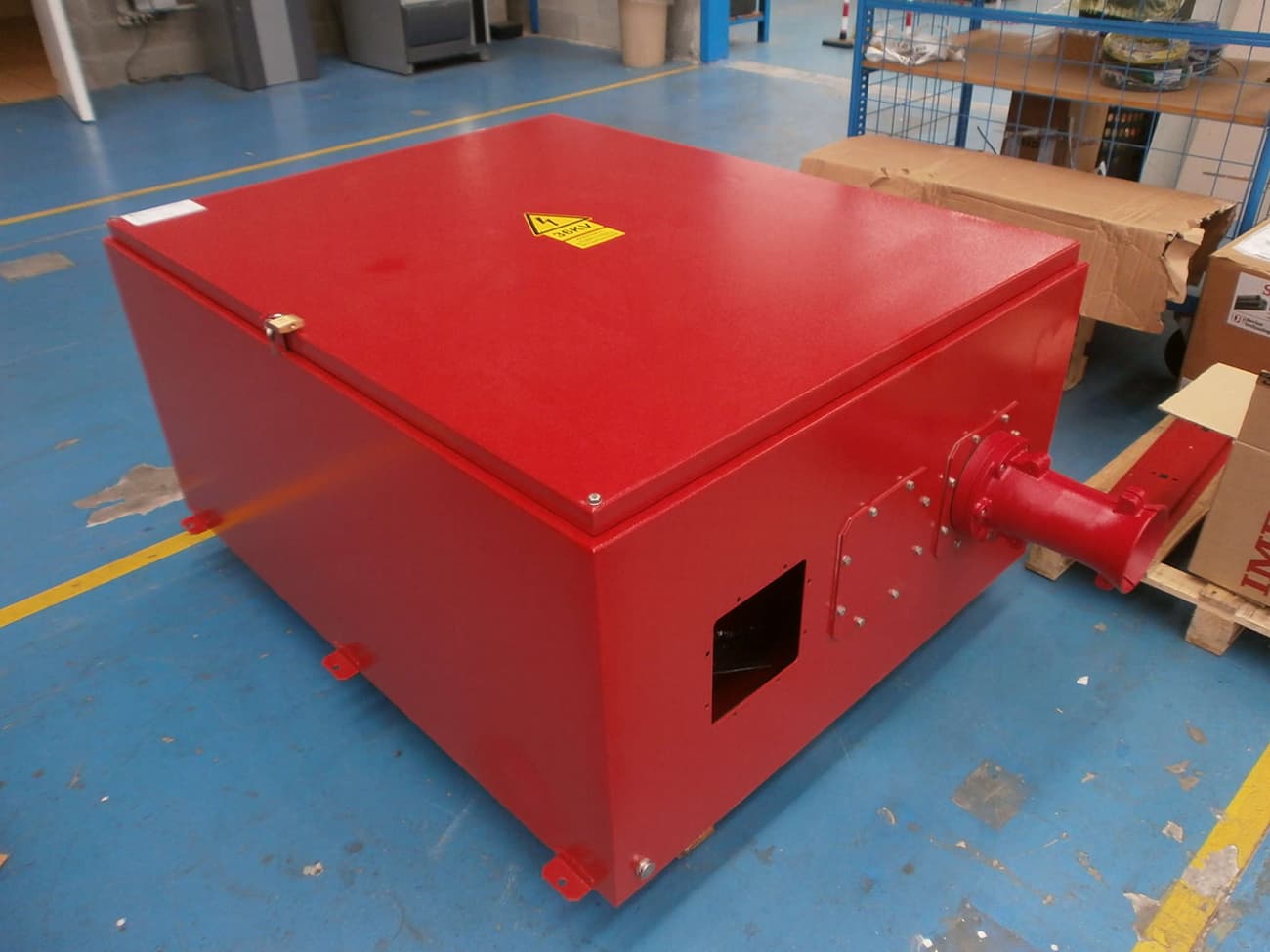

      Photo gallery

      Standards, certifications and safety

      The Atex junction boxes are designed in compliance with the International IEC and European, as well as the ATEX 2014/34/EU directive, as indicated in the table below.

      Constructive features of Jbox Ex-e junction boxes

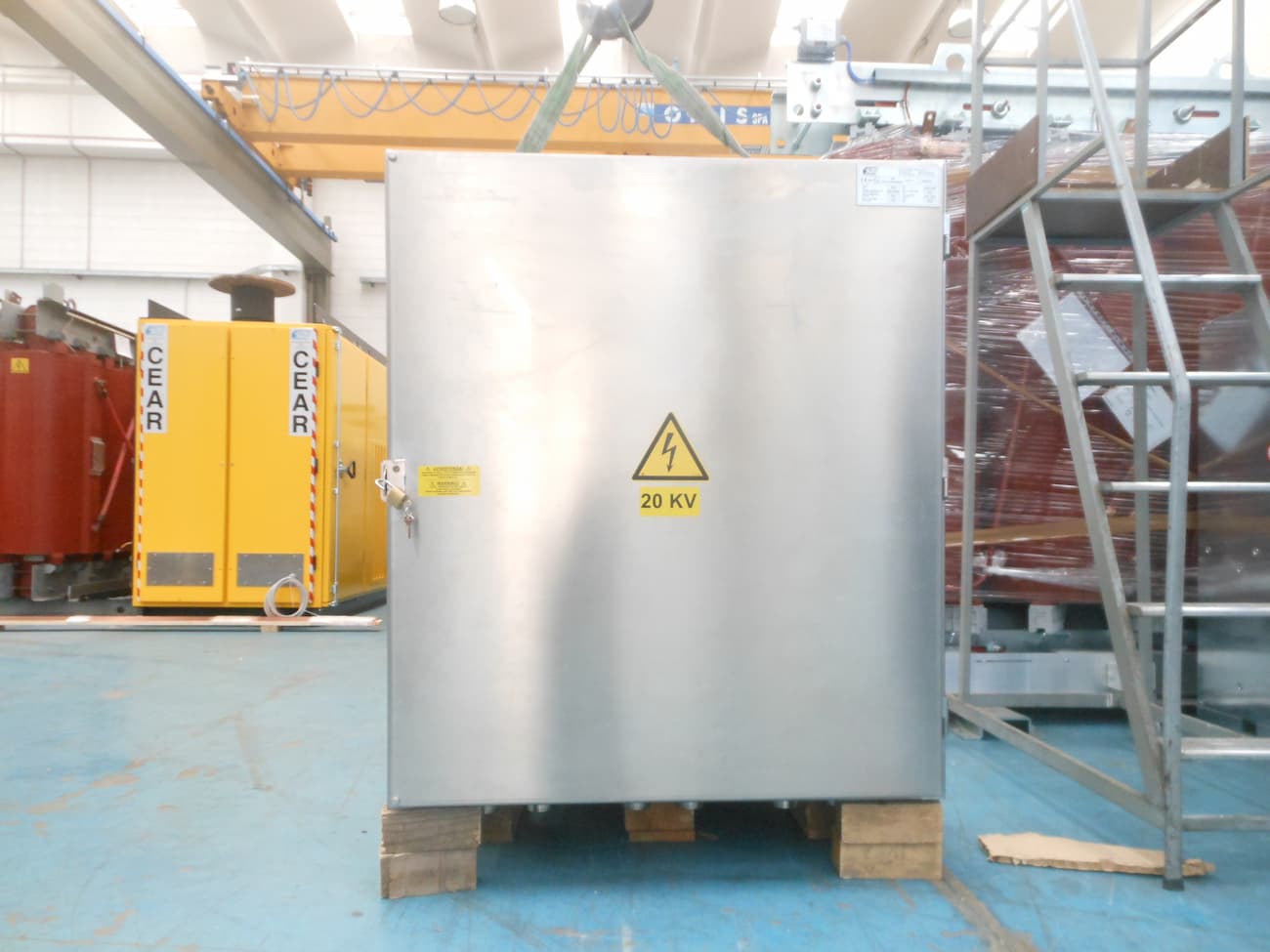

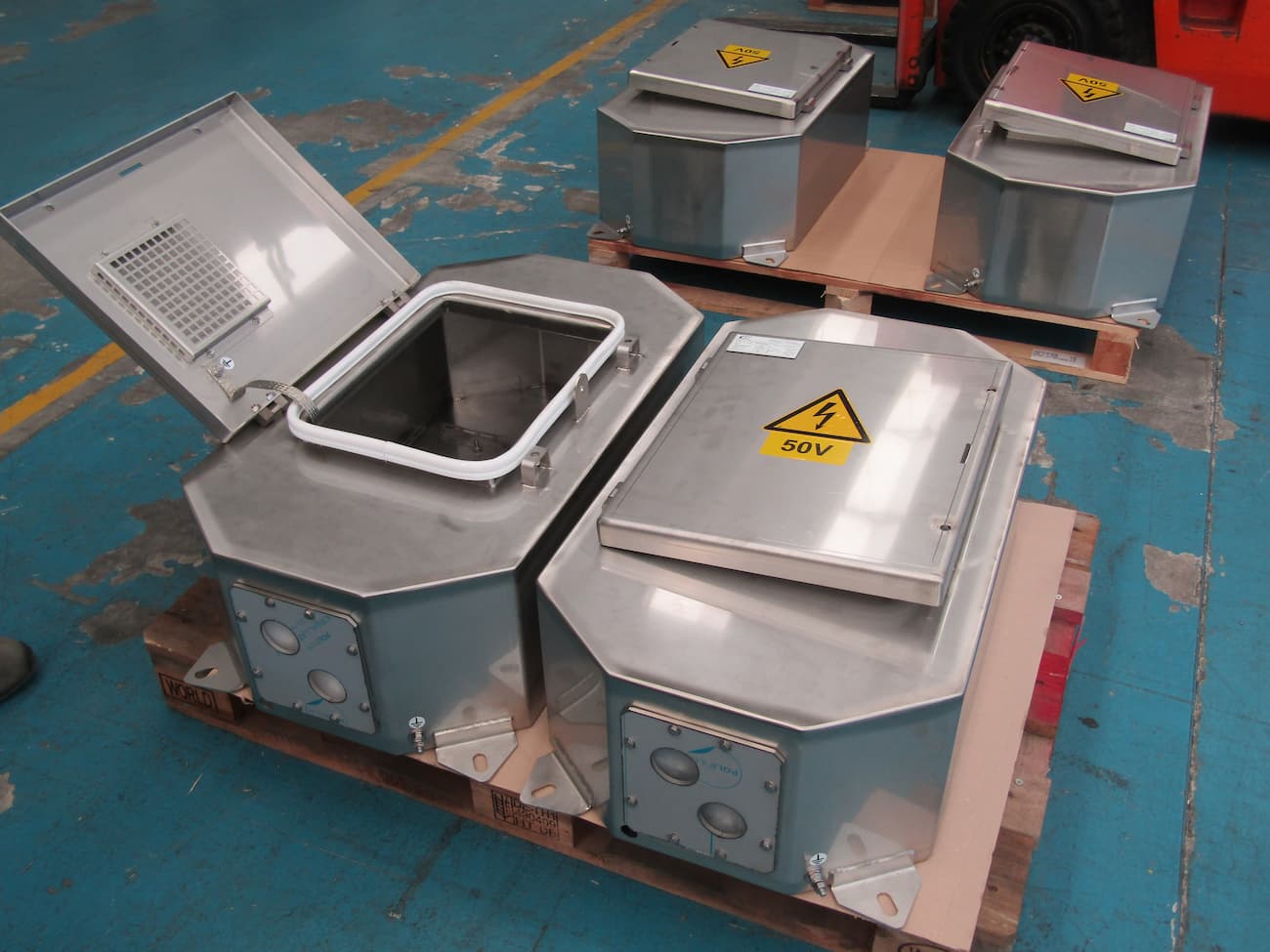

      The Jbox Atex junction boxes are made in their standard version in press-folded steel sheet suitably edged and reinforced with an adequate thickness and paint to withstand strong stresses and heavy duty environment. All the ferrous parts of the components, nuts and bolts and small accessories are made of stainless steel. On request, versions in stainless steel can be made.
      The octagonal version has the option of providing a lateral cable entry, while the rectangular version is designed with cable entry from the bottom.

      Environmental and use conditions

      The installation of Atex MV junction boxes is for outdoor environmental conditions max 50 ° C and min -50 ° C and a  degree of protection IP66. Other operating conditions and other degrees of protection can be evaluated on request.

      Modularity and customization

      • The junction box is customizable according to the number of incoming and outgoing cables, the type of cable gland or MCT most suitable for the use and the type of accessibility required
      • Possibility of equipping the Atex junction boxes with an auxiliary box.
      • On request, the Atex junction box can be equipped with a heating cable.

      Standards, certifications and safety

      7,2kV-11kV 24kV-36kV
      Marking I M2 Ex eb I Mb
      II 2G Ex eb IIC T4 Gb
      II2D Ex tb IIIC T135°C Db      		 I M2
      II 2G
      II2D Ex tb IIIC T135°C Db
      Reference Standard EN 60079-0
      EN 60079-7
      EN 60079-30
      EN 60079-31      		 EN 60079-0
      EN 60079-30
      EN 60079-31
      Only for reference: EN 60079-7

      Technical features of Atex medium voltage junction boxes

      7,2 kV
      3AC      		 11 kV
      3AC      		 24 kV
      3AC      		 36 kV
      3AC
      Rated voltage Ur 7,2 kV 11 kV 24 kV 36 kV
      Withstand voltage at 50 Hz (1 min) Ub 20 kV 28/50 kV 50 kV 70 kV
      Rated impulse voltage U imp 60 kV 95 kV 125 kV 145 kV
      Rated frequency fn 50-60 Hz 50-60 Hz 50-60 Hz 50-60 Hz
      Main busbar/cables rated current Ir 630 A 630 A 630 A 630 A
